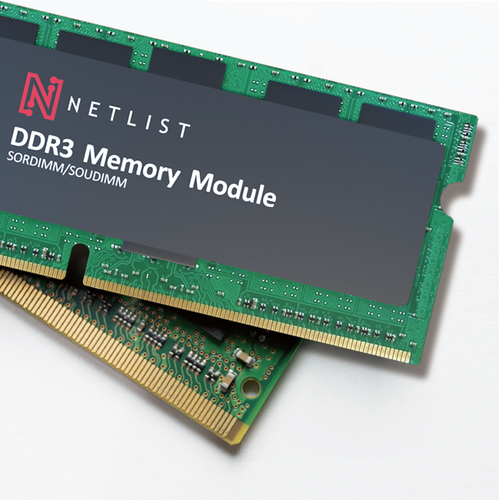

DDR3
過酷な環境下での使用を想定した特別仕様。
Code ddr3
CTR 469
- FEATURES
- ‧DDR3 functionality and operation
- ‧JEDEC Standard 1.35V and 1.5V Power Supply
- ‧VDDSPD = +3V to +3.6V
- ‧Operating Temperature
- TCASE = 0°C to +85°C for Commercial Grade
- TCASE = -40°C to +95°C for Industrial Grade
- ‧Data Transfer Rates
- Up to PC3-1866
- ‧Nominal and dynamic On-Die Termination (ODT) for data, data
- ‧strobe, and data mask signals
- ‧Terminated control, command, and address signals
- ‧Fly-by topology
- ‧Fixed Burst Chop (BC) of 4 and Burst Length (BL) of 8
- ‧Selectable BL of 4 or 8
- ‧RoHS compliant (Lead-free)
- ‧Conformal Coating and BGA underfill are available upon request
- BENEFITS
- ‧Long term supply
- ‧Locked BOM support
- ‧High quality
- ‧100% system level testing
- ‧Technical support
